SFX BMT55 0° Axial Driven Tool Holders

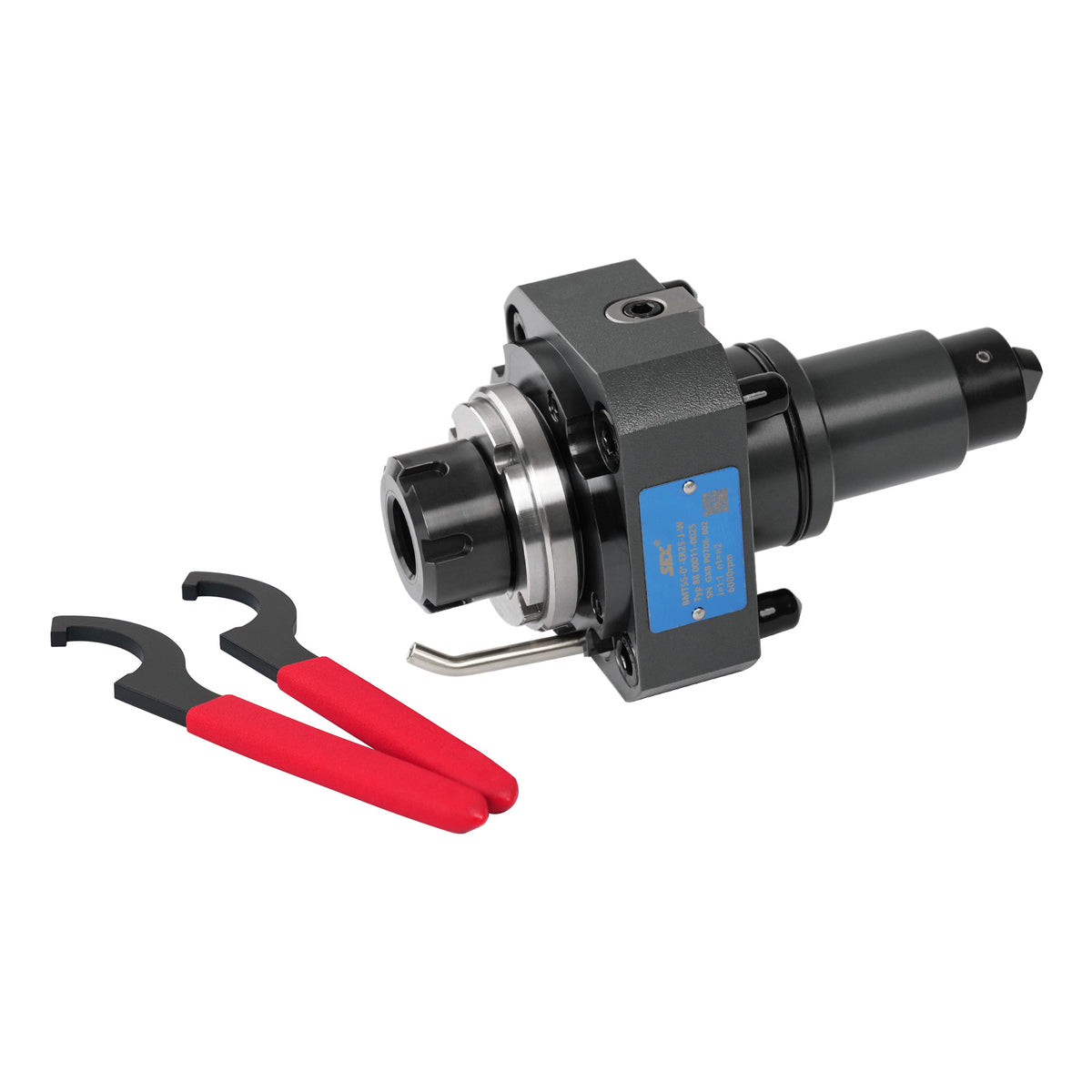

BMT55 0° Axial Driven Tool Holder

Designed for CNC turning centers equipped with a compatible BMT55 turret interface, this axial driven tool holder supports precision machining operations.

Key Specifications

• Mounting Interface: BMT55
• Orientation: 0° Axial
• Gear Ratio: 1:1
• Maximum Speed: 6000 rpm
• Inner Taper Accuracy: 0.003 mm
• Available Collet Sizes: ER25 / ER32
• Bearing Types: Angular Contact Bearing (J)
• Clamping Configurations: External Clamping (W) and Internal Clamping (N)

Key Features

• Patent Elastic Clearance Elimination Wedge: Eliminates clearance between the tool holder and the turret interface. Improves machine tool accuracy by up to 5 μm!
• Quality Assurance & Durability: Manufactured using carefully selected materials and components for reliable performance and long-term durability.
• ER Friction Bearing Nut: Stationary internal sliding design prevents deformation during nut tightening, helping reduce unwanted movement and preserve machining precision.
• Premium Components: Built with Japanese NSK bearings, Swedish oil seals, and German high-performance grease.
• Stringent Running-In Inspection: Every unit undergoes strict precision testing and running-in inspection before shipment to verify operating stability, temperature rise, and noise performance.

Dimensions and Compatibility

To ensure compatibility with your CNC turning center, please verify the following parameters:

• Mounting Interface: Confirm compatibility with your BMT55 turret interface.
• Hole Distance: Compare mounting hole positions against the dimensions specified in the technical drawing.
• Mounting Dimensions: Verify the mounting section dimensions for a secure fit.
• Collet Size: Select between ER25 or ER32 configuration according to your tooling requirements.
• Clamping Configuration: Confirm whether External (W) or Internal (N) clamping is required.

Please refer to the technical datasheet below for detailed dimensions and specifications. If you need assistance matching your machine model, feel free to contact us.

Warranty and After-Sales Service

• 2-Year Warranty: Includes two maintenance services during the warranty period. Customers are responsible for one-way shipping costs.
• 1–3 Years After Purchase: Maintenance service available at a labor charge of $20 per unit per visit (excluding parts). Customers are responsible for round-trip shipping costs and any applicable customs duties.
